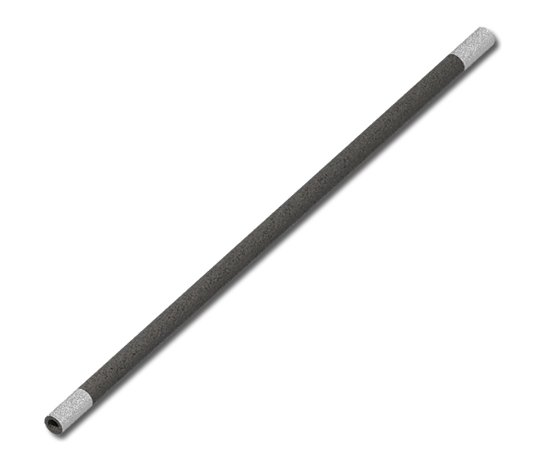

Silicon Carbide Heating Elements

We supply Kanthal® Globar® Silicon Carbide heating elements capable of operation at temperatures up to 1625°C. These elements can be custom designed according to your unique specifications.


Kanthal® Globar® SD

Kanthal® Globar® SD elements are appropriate for use at temperatures up to 1 600°C. These elements take the form of single or multiple leg round rods or tubes ranging in diameter from 10mm to 55mm. These elements may be installed either vertically or horizontally.

Standard dimensions and sizes:

Diameter (mm):10121416202532384555
Max hot zone length (mm):3505006006008508501250145024002400
Max total length (mm):65095010001150145016002000225033003300

Product handbook

You can download the Kanthal® Globar® SD handbook from the Kanthal® website by clicking here

Kanthal® Globar® SG and SR

Kanthal® Globar® SG and SR are tubular or spiralled Silicon Carbide elements manufactured from Kanthal® Globar® HD material. These elements are ideal for even the most challenging applications as they offer excellent resistance to oxidation and chemical attack, resulting in longer element life and less energy costs. These elements are suitable for use at up to 1 600°C. SG and SR elements are manufactured in tubular form in standard diameters ranging from 12mm - 54mm (other dimensions can be offered upon special request). These elements may be installed either vertically or horizontally. SG elements have terminals at each end whereas SR elements feature both terminals at the same end.

Standard dimensions and sizes for SG elements:

Diameter (mm):1216192532384454
Max hot zone length (mm):27532542562572597510751275
Max total length (mm):77585095014501550180019002150

For SG elements, the standard location of the hot zone is in the center of the element. Please refer to the product handbook for a more detailed illustration and further specifications.

Standard dimensions and sizes for SR elements:

Diameter (mm):1216192532384454
Max hot zone length (mm):225225275375475550550600
Max total length (mm):42542552572582595010001050

For SR elements, the standard location of the hot zone is at the end opposite to the terminal connection. Please refer to the product handbook for a more detailed illustration and further specifications.

Product handbook

You can download the Kanthal® Globar® SG and SR handbook from the Kanthal® website by clicking here
